engine power + engine support + exhaust + cooling: in chronological order

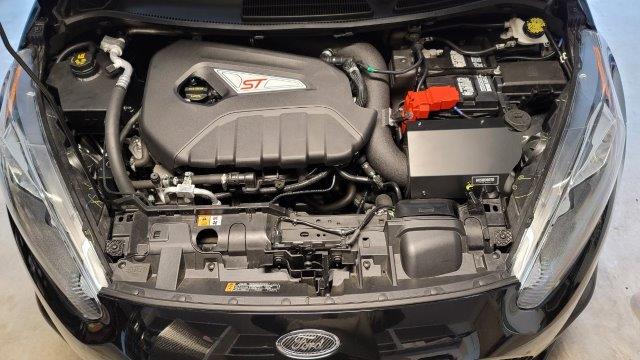

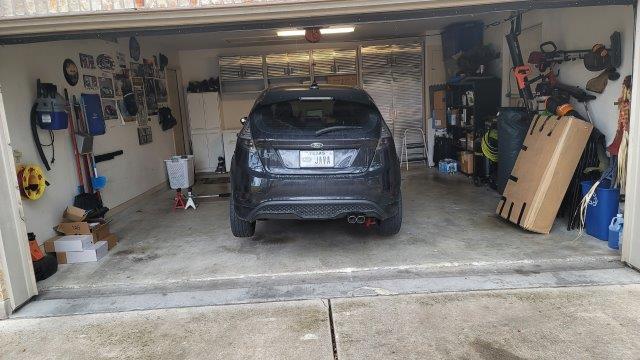

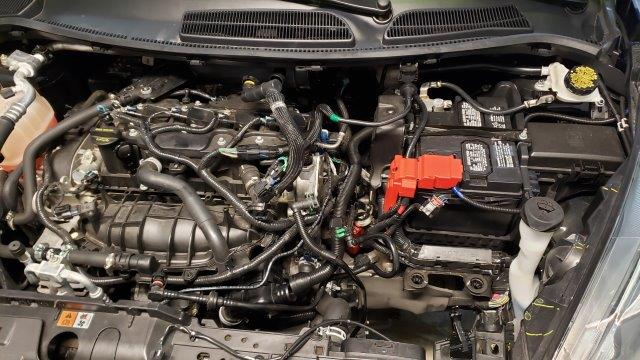

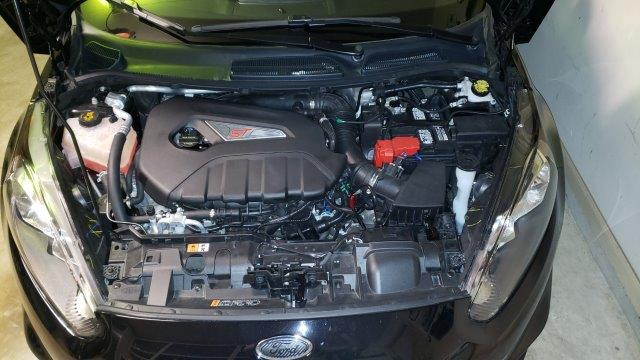

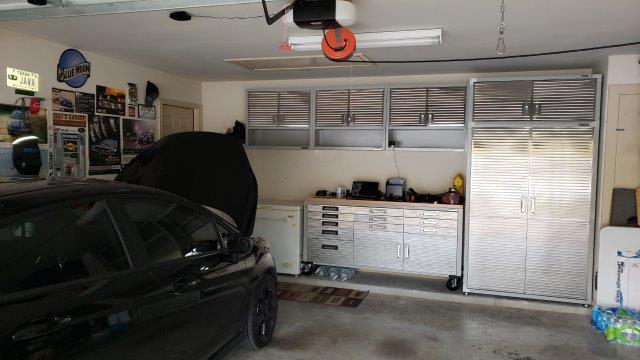

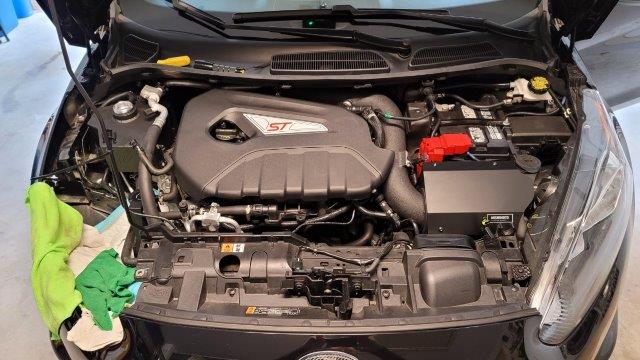

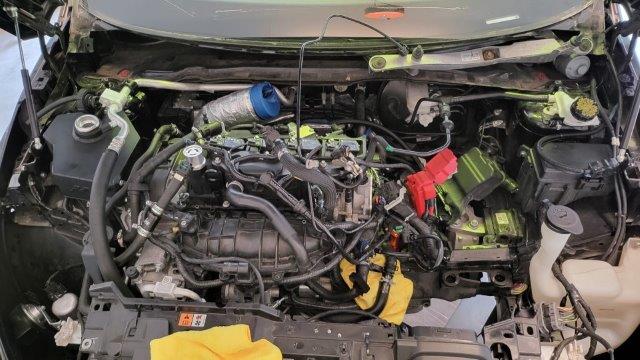

Brand new (to me) and 100% stock

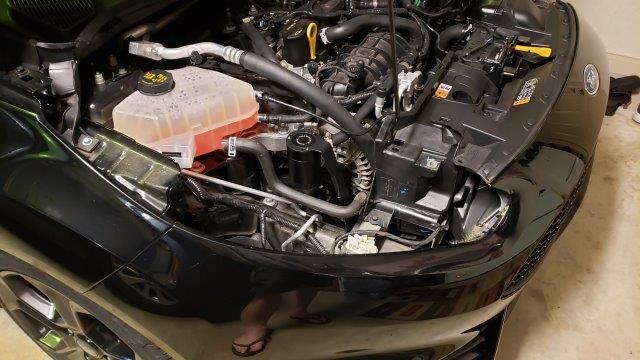

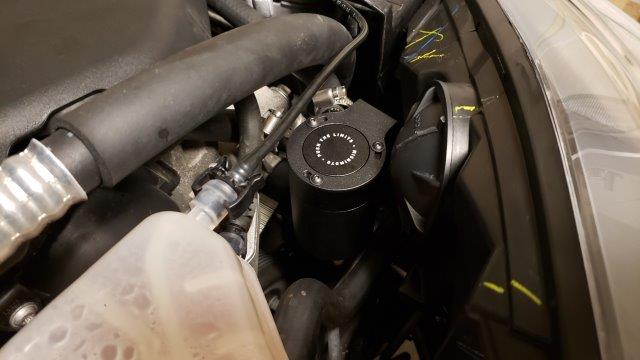

Mishimoto Oil Catch Can (OCC) install

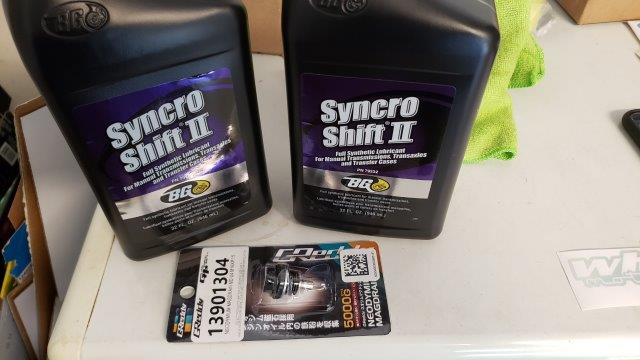

Whoosh Rear Motor Mount install and transmission fluid swap

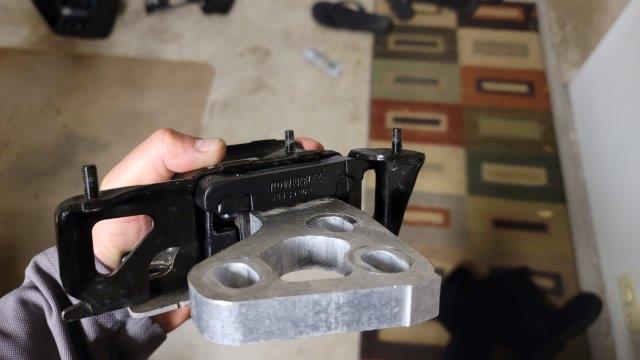

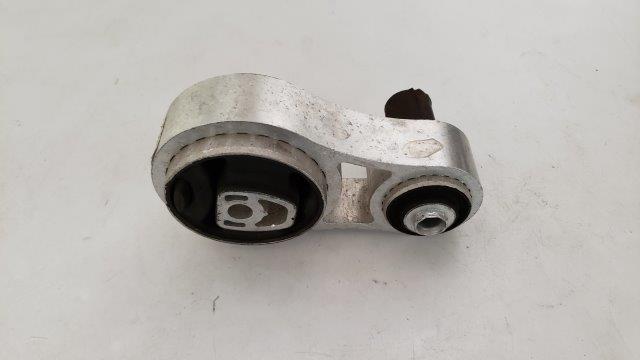

Stock rear motor mount

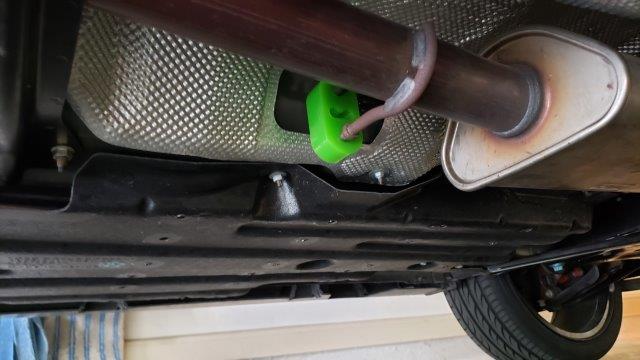

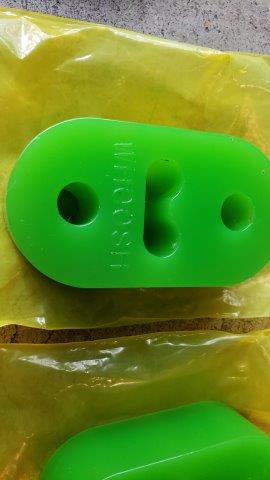

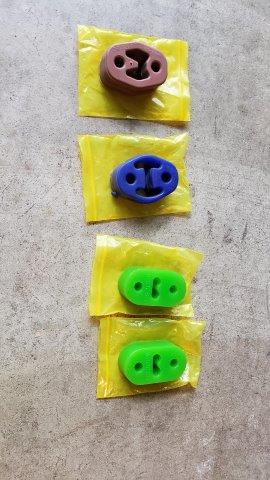

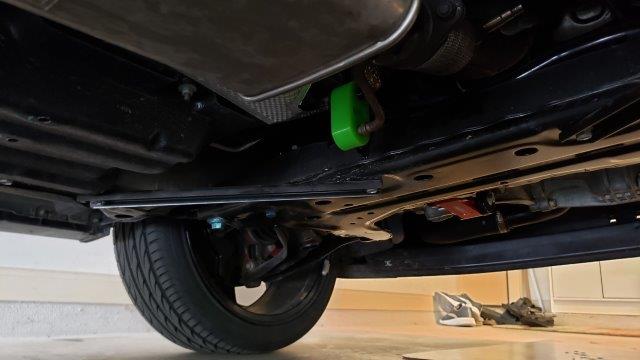

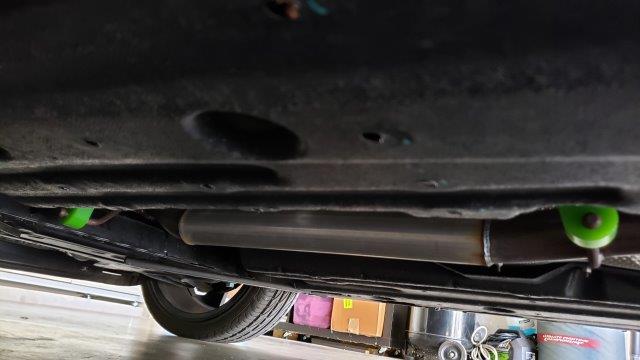

Whoosh Exhaust Hanger install

Had Muffin Muffler remove the stock resonator

Added a UPR Pro Series check valve to the Mishimoto Catch Can

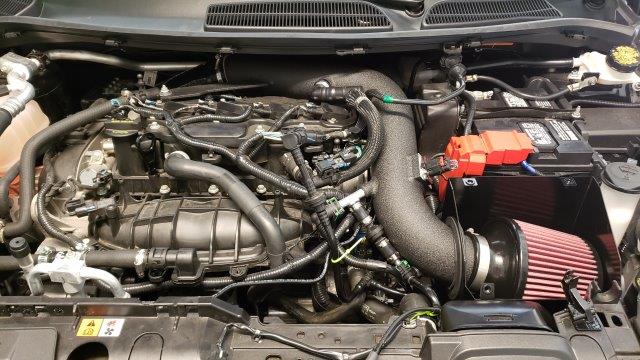

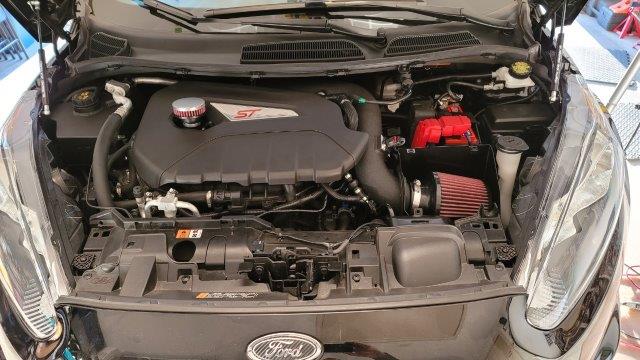

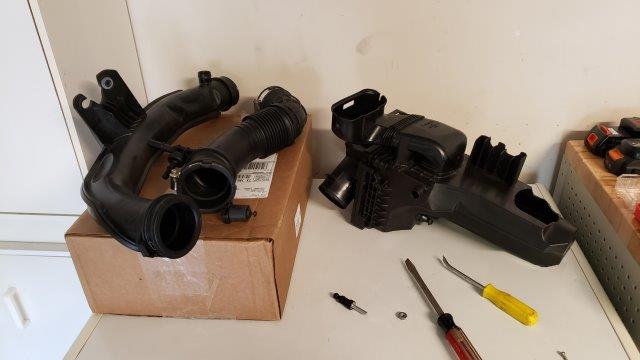

Mishimoto Intake install

Removed the stock symposer, forcefully...

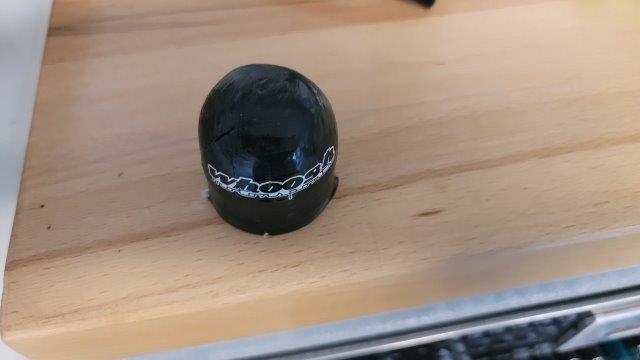

...and added the Whoosh Symposer Delete

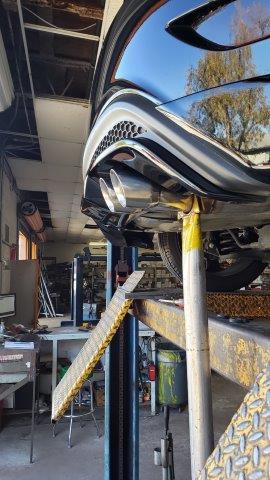

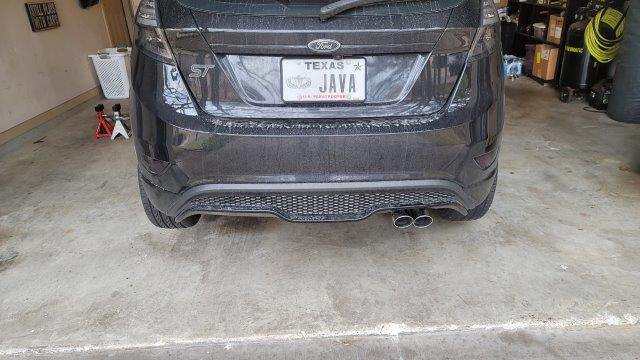

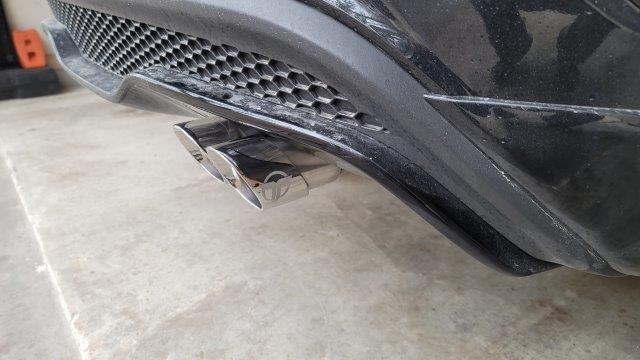

Muffin Muffler removing the stock muffler, adding a stainless tip

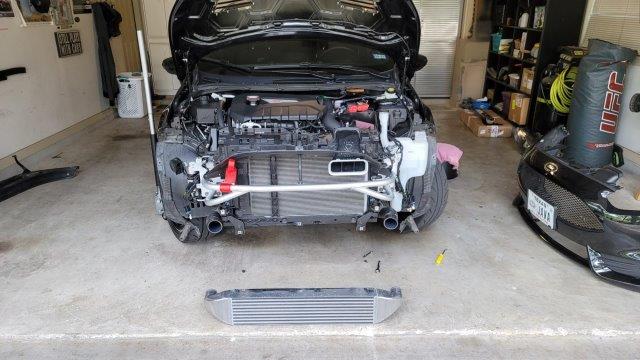

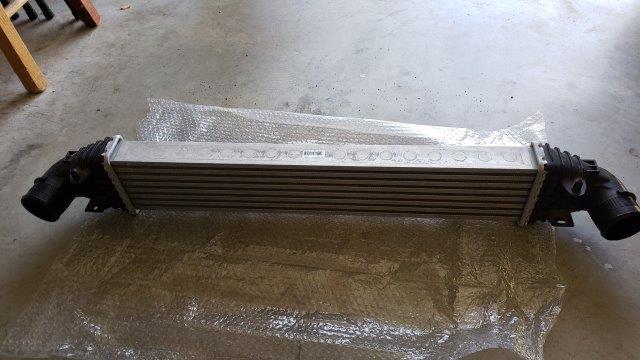

Stock Intercooler removed

Whoosh Intercooler installed

Powerflex engine and transmission mount inserts install
with upgraded engine mount bolt

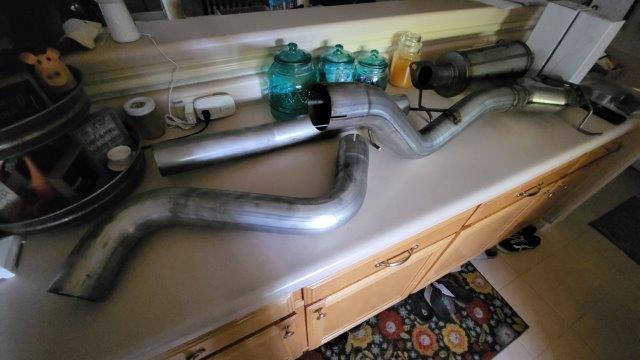

2J Racing Downpipe and Thermal R&D Exhaust install:

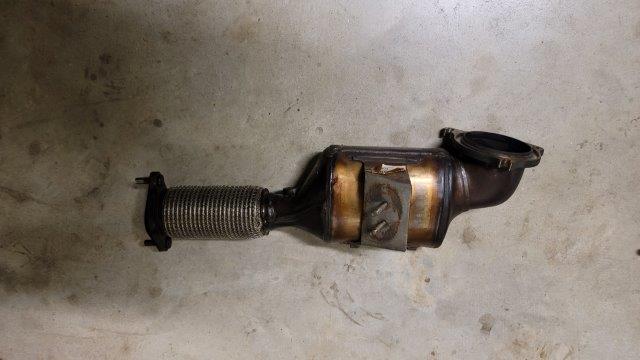

Stock downpipe out

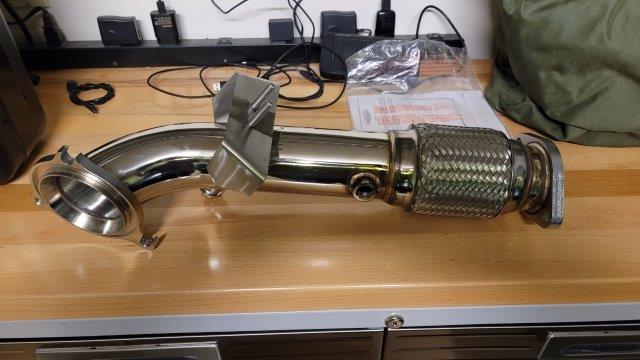

2J Racing Downpipe, ready to install

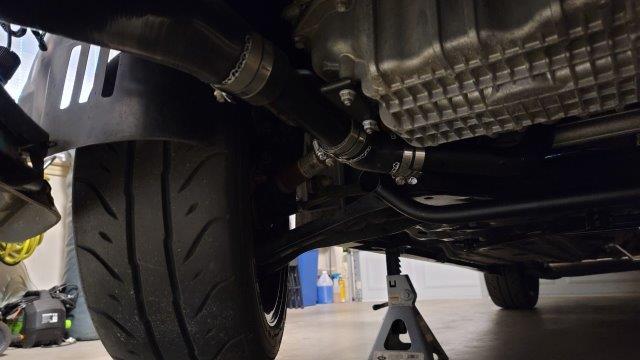

2J Racing Downpipe and Thermal R&D Exhaust installed!

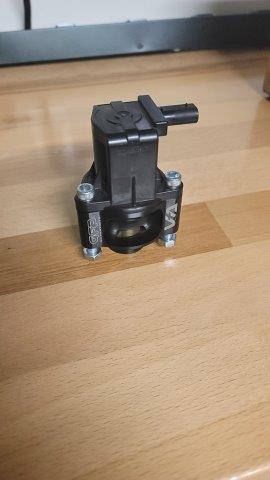

Go Fast Bits VTA Blow Off Valve install

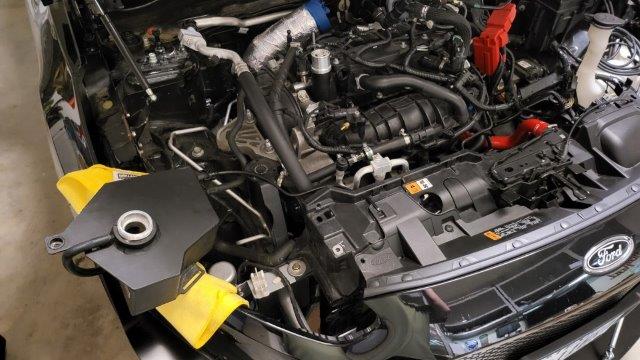

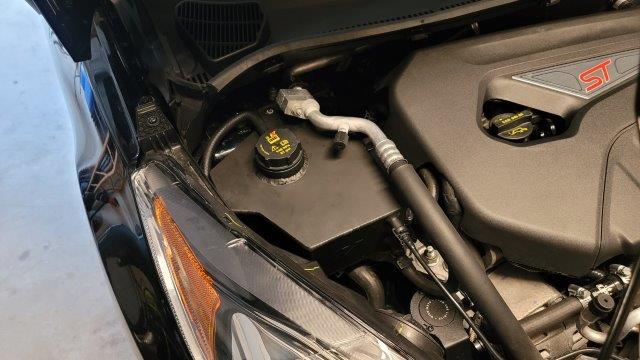

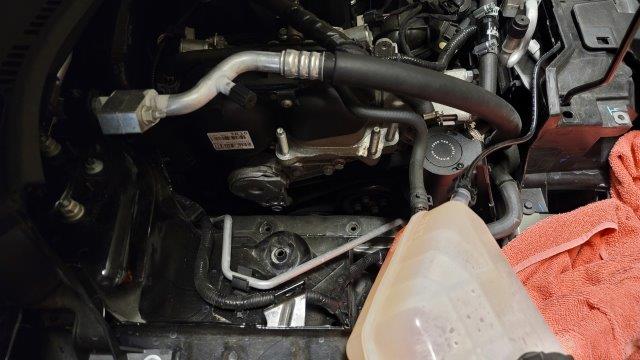

Mishimoto Expansion Tank install

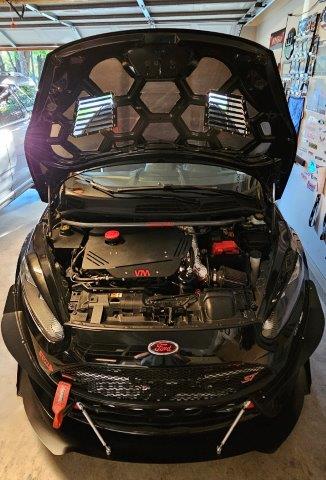

Verus Hood Louver install

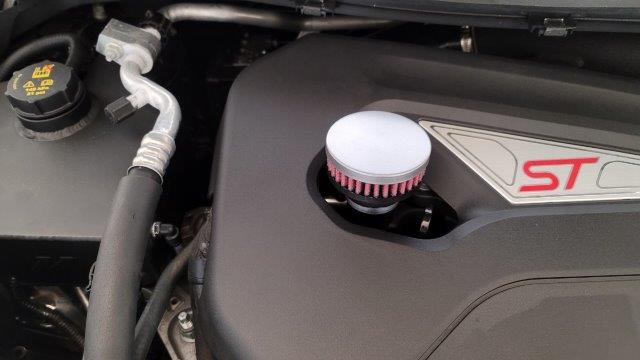

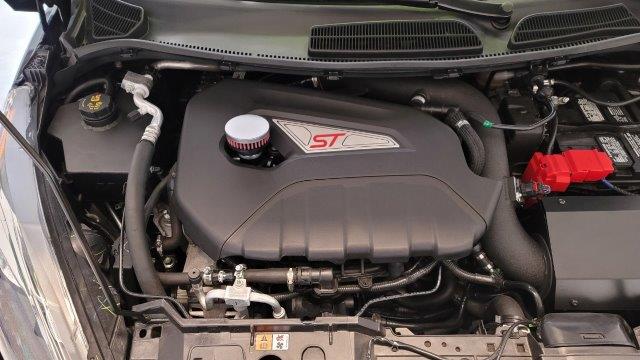

CFM Crankcase Breather install

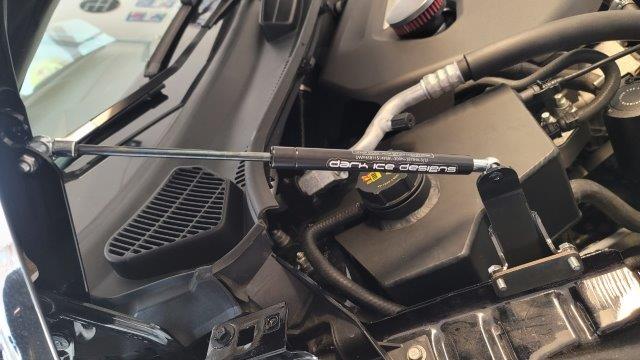

DarkIce Designs Hood Strut install

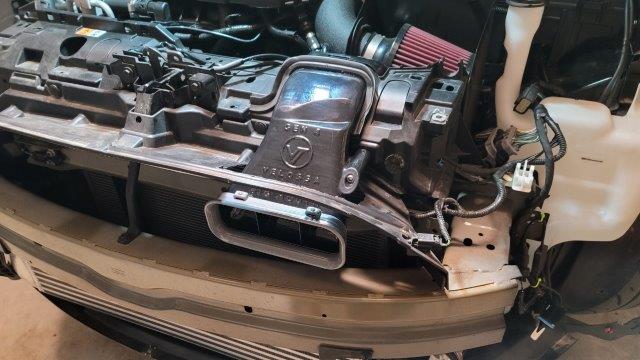

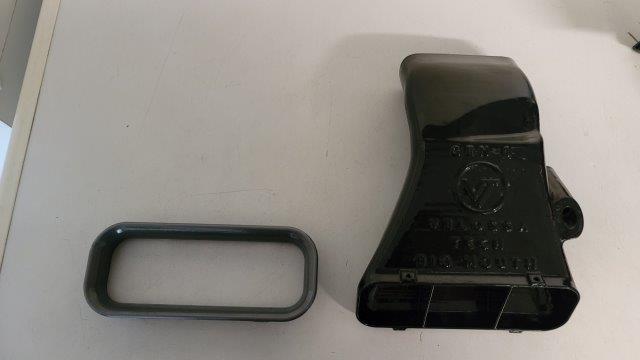

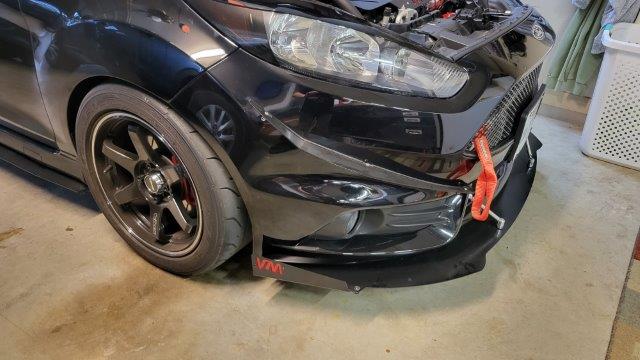

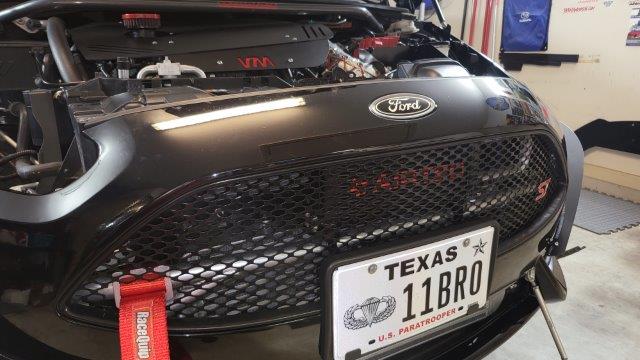

Velossa Tech Big Mouth install

Whoosh Boost Hoses installed

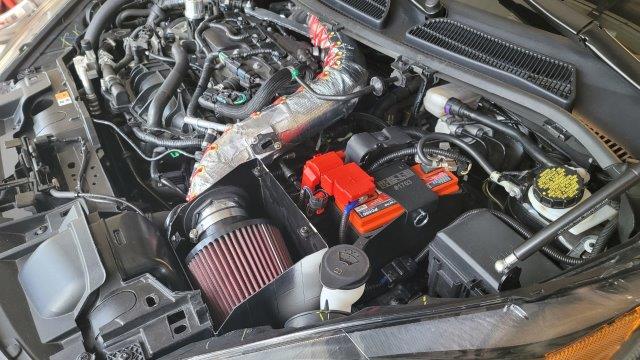

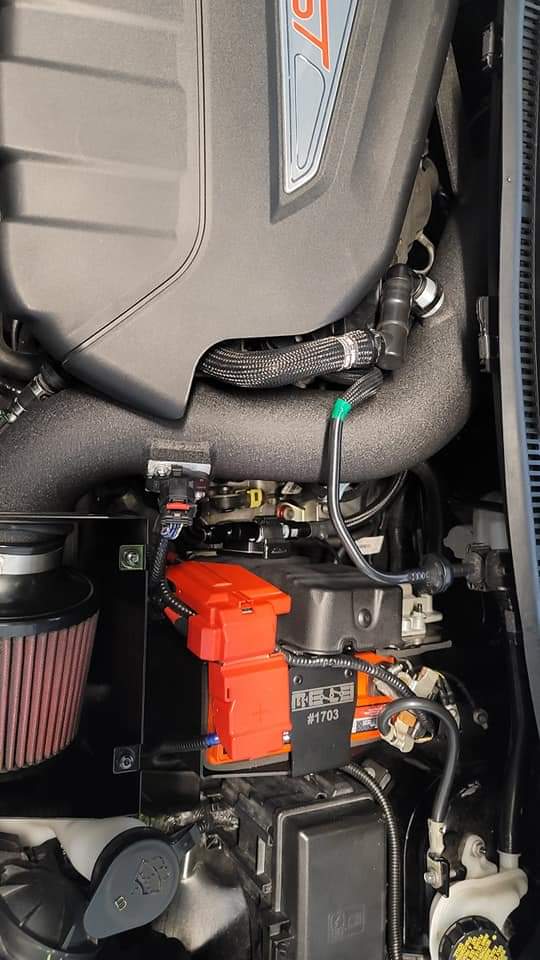

Mele Designs Battery Mount installed with Odyssey PC680

Paint matching the Big Mouth

Bravo Alpha Big Fiesta ST Intercooler install

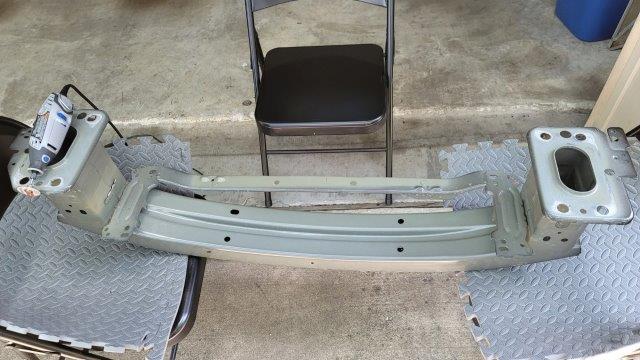

Removing and painting OEM bracket to mount the intercooler

Whoosh V1 Intercooler out, bracket in

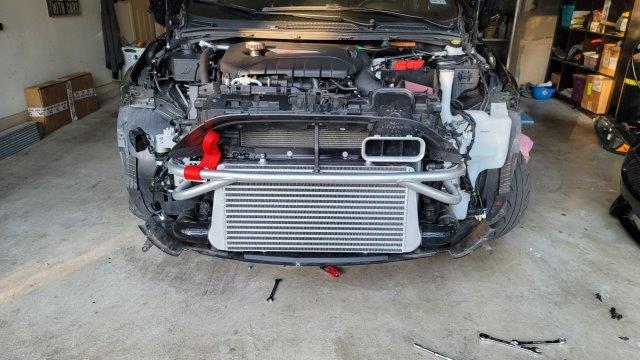

Bravo Alpha Intercooler fitted and installed

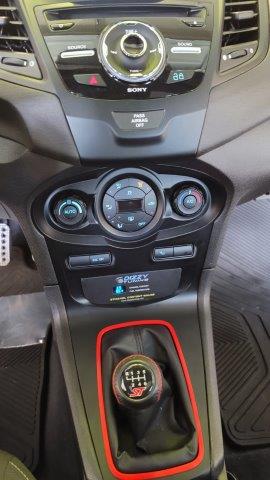

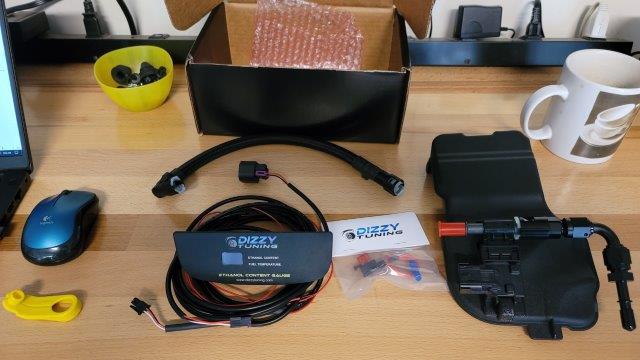

Dizzy Tuning Ethanol Content Gauge install

Removed Symposer Delete and GFB VTA Blow Off Valve

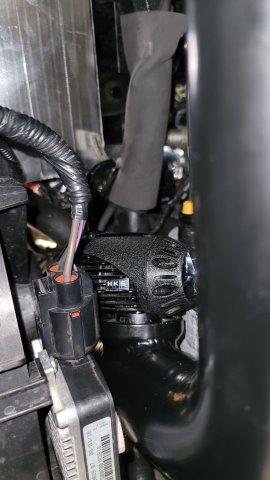

HKS Super SQV Black Edition BOV Kit installed

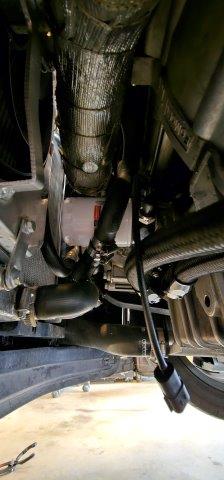

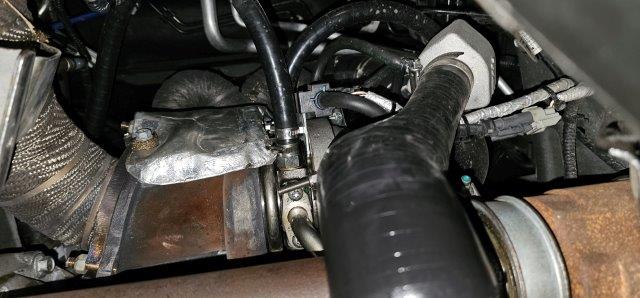

Thermo-Tec Downpipe Heat Shield install

Thermo-Tec Intake Cool Tube install

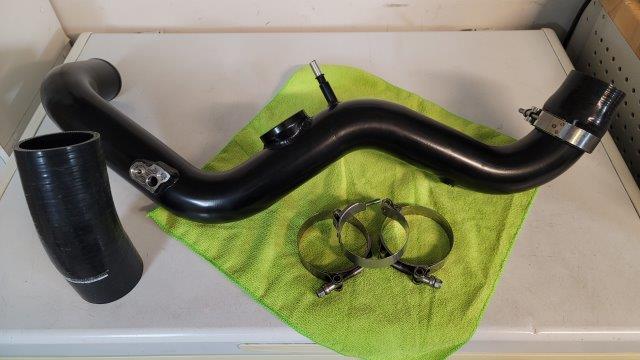

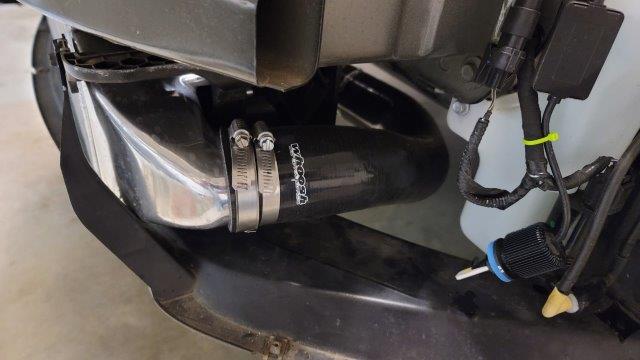

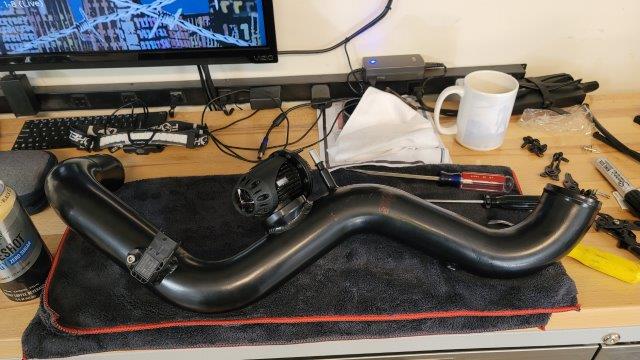

CP-E Exhale (cold side intercooler pipe) install
with HKS Super SQV Black Edition BOV

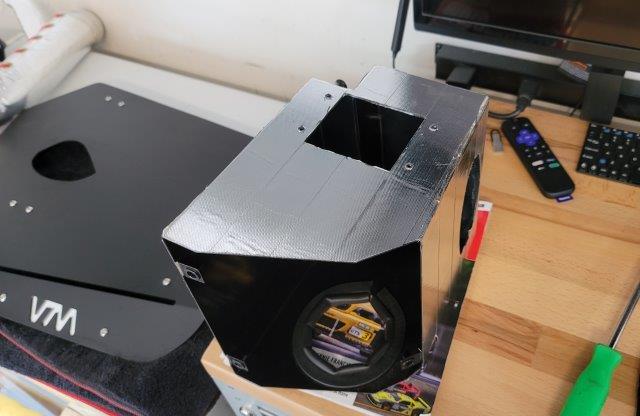

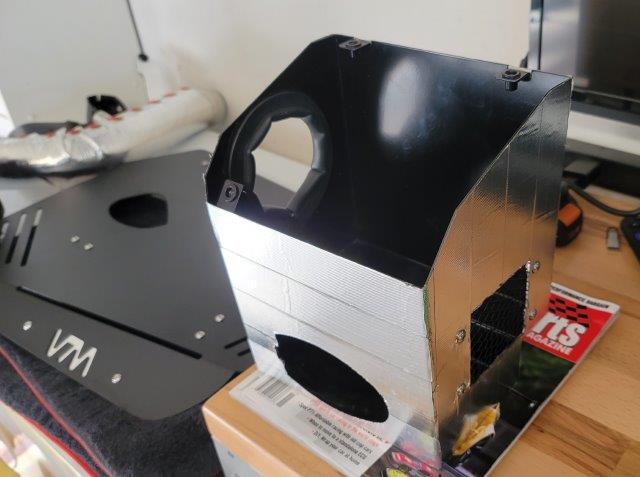

Modified Mishimoto Intake box with inlet and heat reflective tape

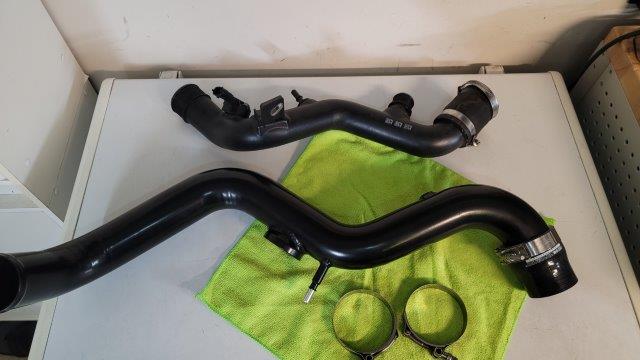

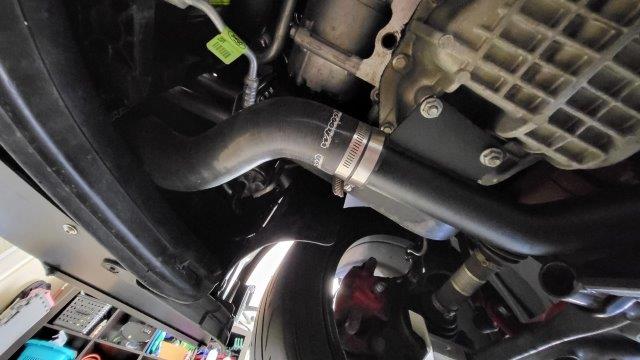

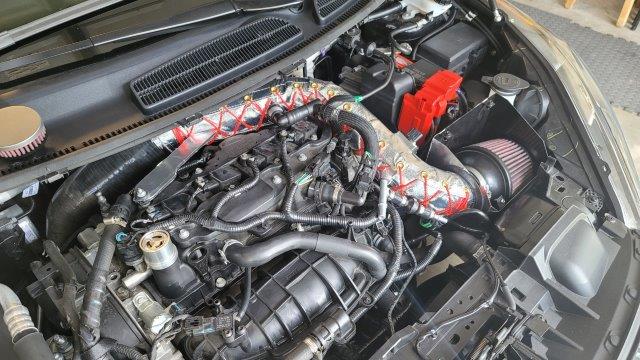

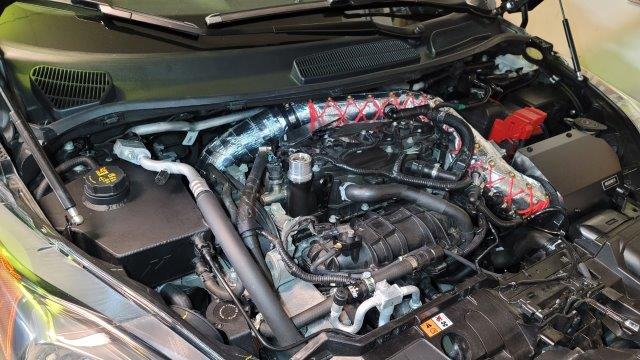

Whoosh Hot Side Intercooler Pipe Kit installed

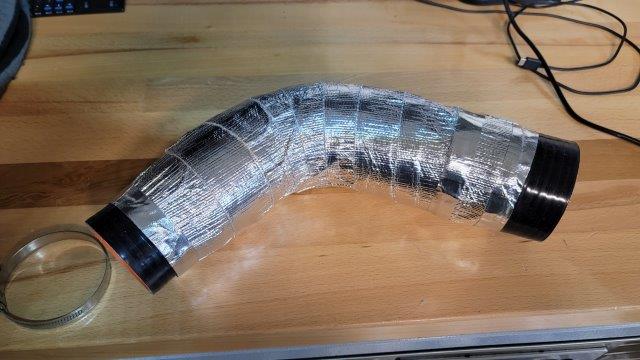

Heat reflective wrap installed on Mishimoto Intake Coupler

Shortened Whoosh Hot Side Intercooler Pipe
to remove pinch on S coupler hose

BIG TURBO INSTALL!!!

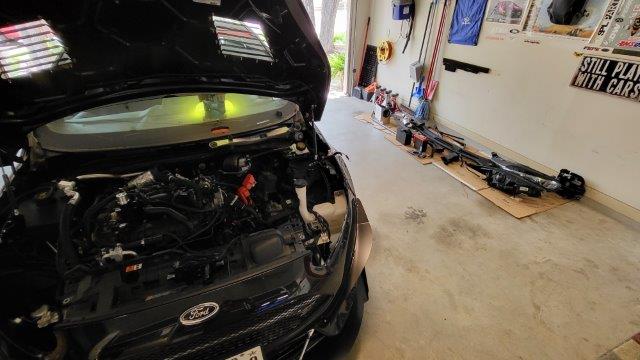

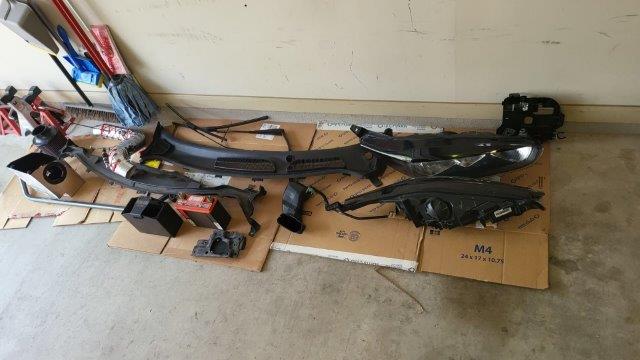

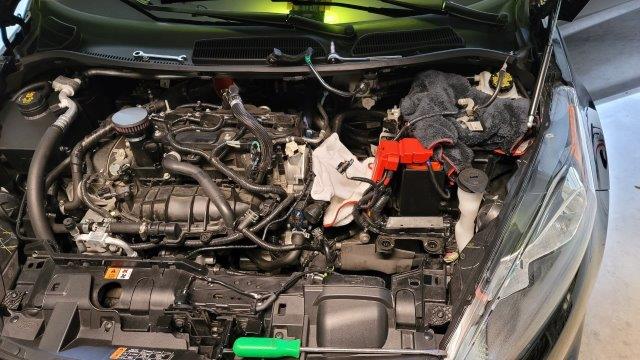

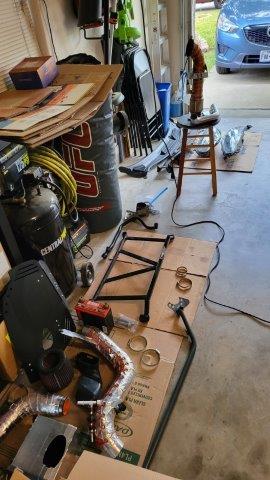

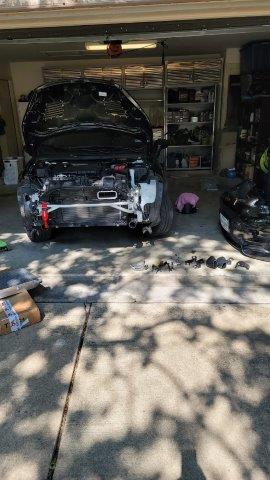

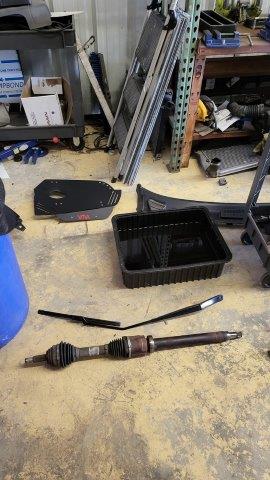

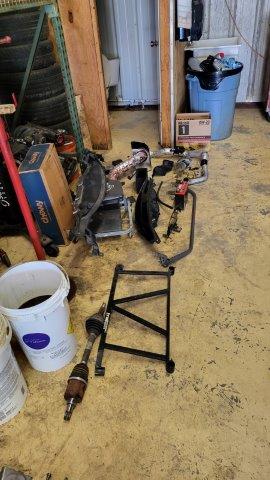

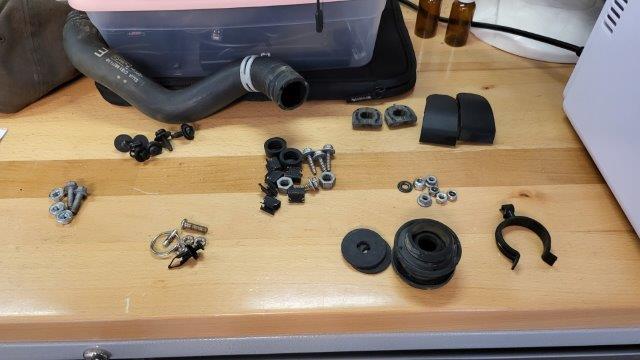

Pre-install teardown

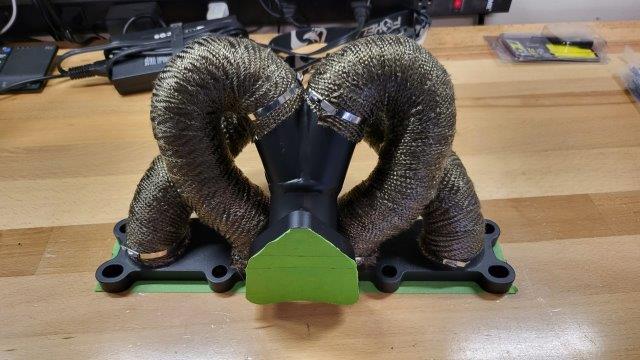

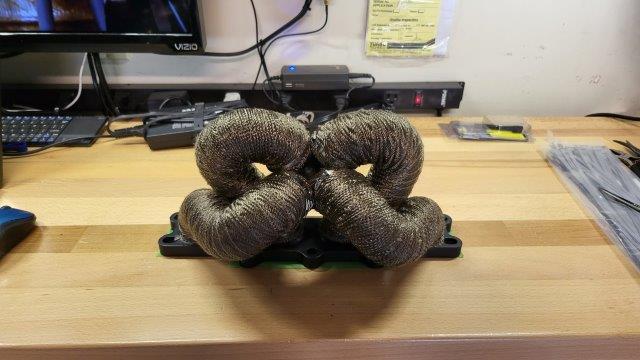

Airtec Tubular Manifold install:

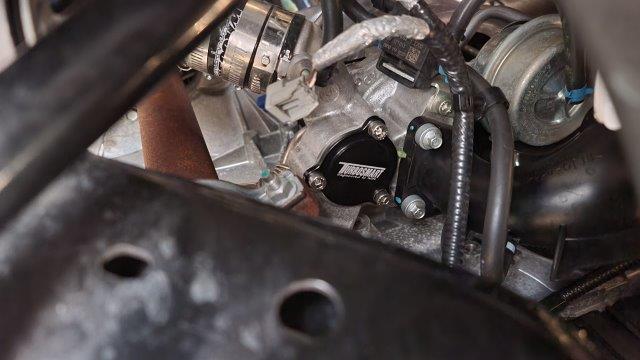

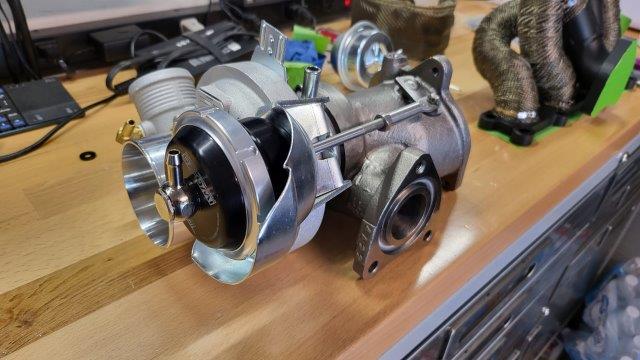

Turbo Technics S280 with Turbosmart 14LBS Wastegate Actuator install:

Bosch 30% uprated Injector and Xtreme-DI High Pressure Fuel Pump install:

Stock Turbo and Manifold:

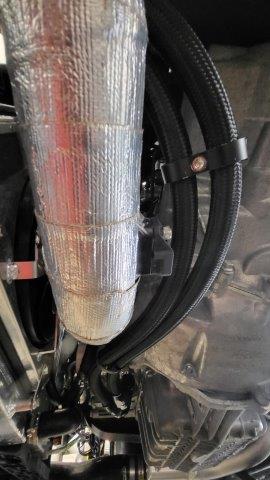

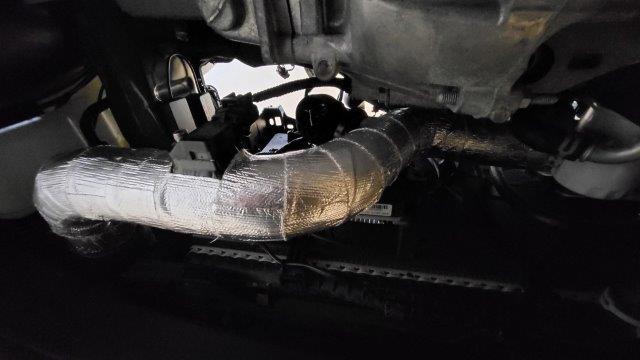

Heat Reflective Wrap installed on the CP-E Cold Side Pipe

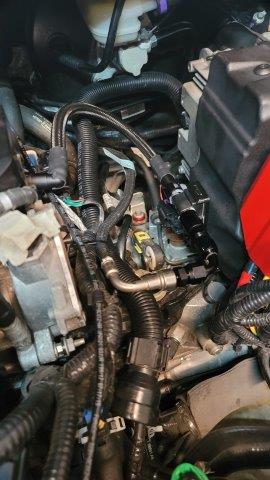

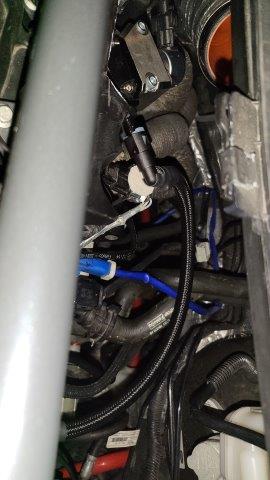

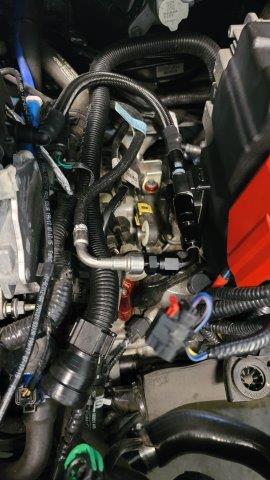

Worked with Jason of Dizzy Tuning to create a custom length
fuel hose for the Ethanol Content Gauge

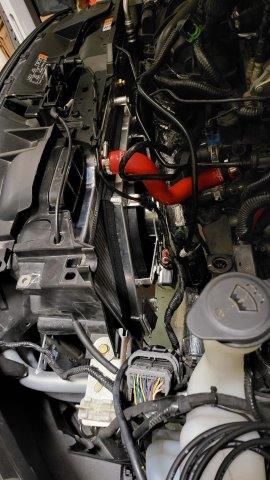

Mishimoto Radiator with Fan Shroud and Whoosh Radiator Hoses install

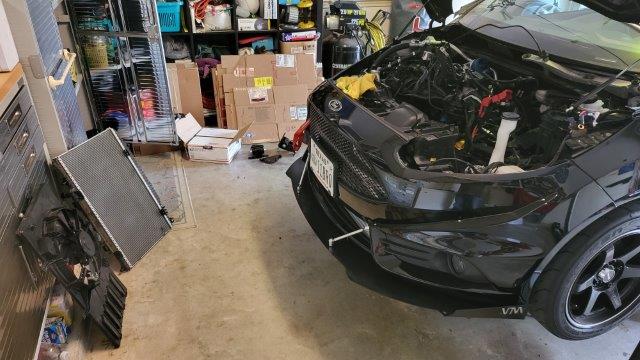

Stock radiator and fan shroud removed

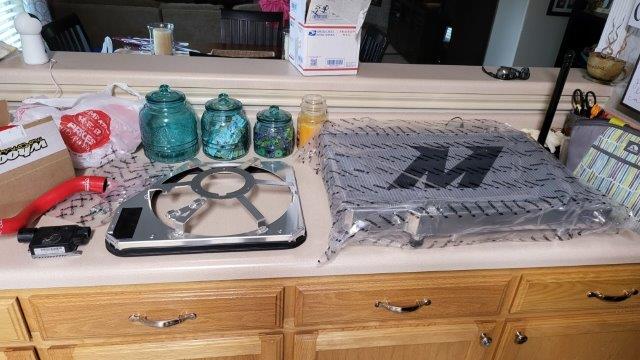

Mishimoto radiator, fan shroud and Whoosh radiator hoses

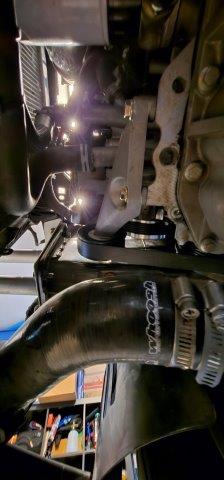

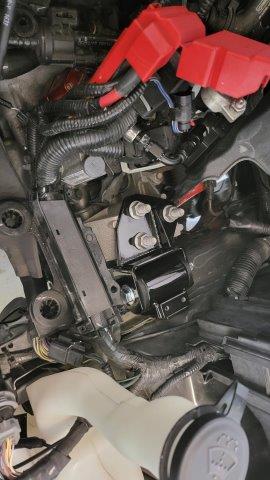

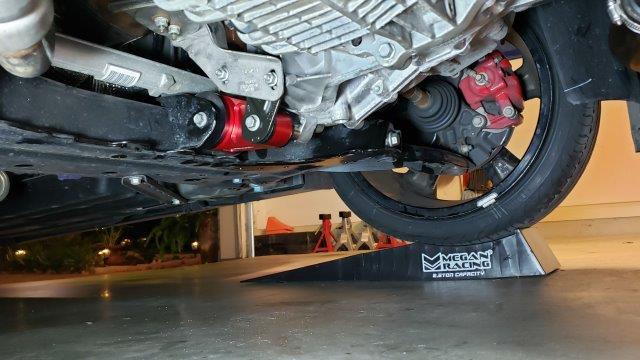

AWR 88a Rear Motor Mount, Upper Motor Mount
and Upper Transmission Mount install

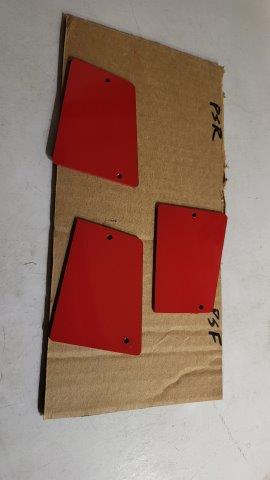

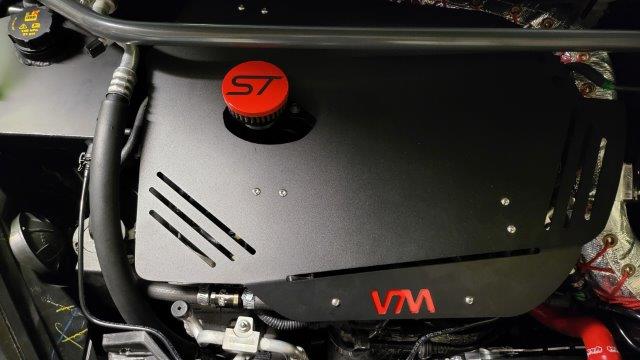

Vega Motorworks Accent Plates and CFM Performance
Valve Cover Breather painted cherry red

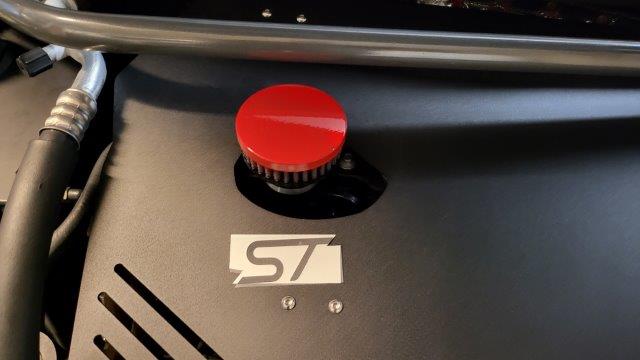

Black ST decal added to the Valve Cover Breather

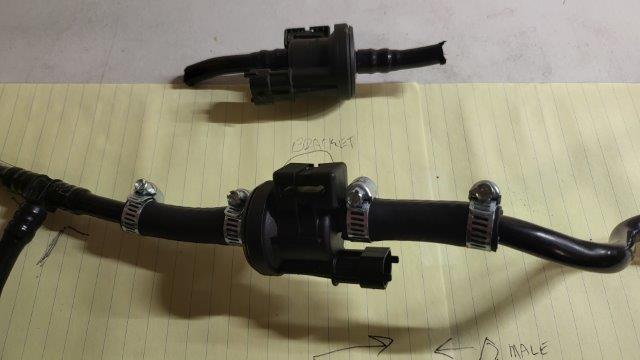

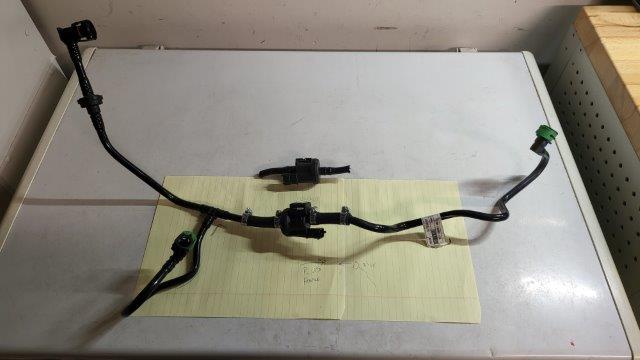

Purge Valve replacement, the easy way

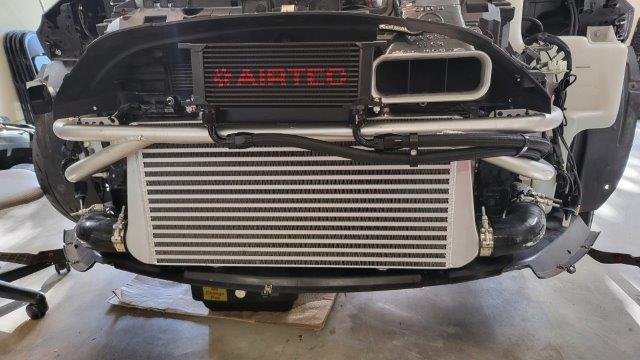

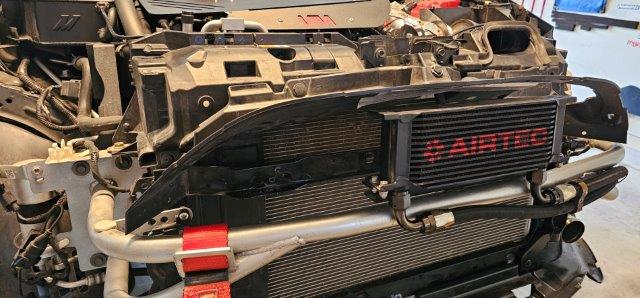

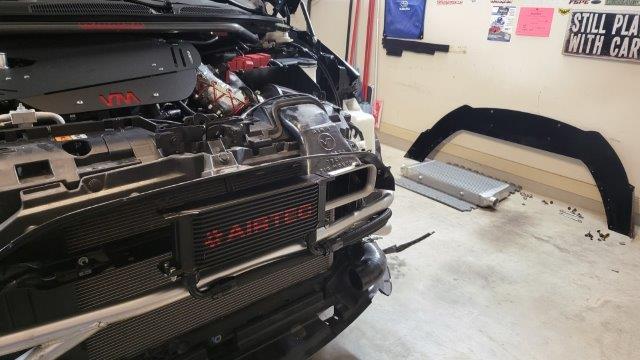

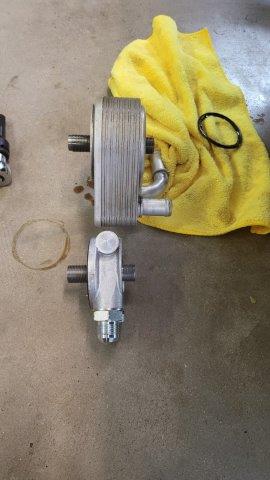

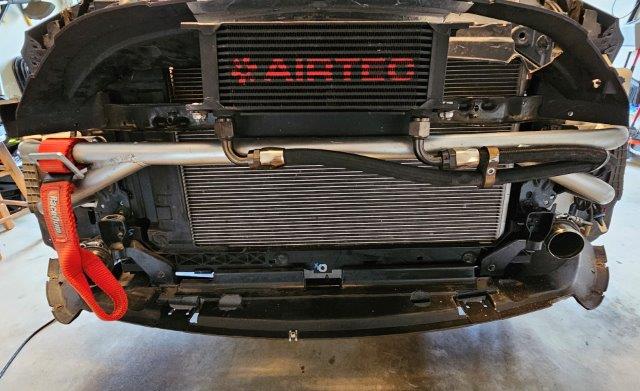

Airtec Oil Cooler Install

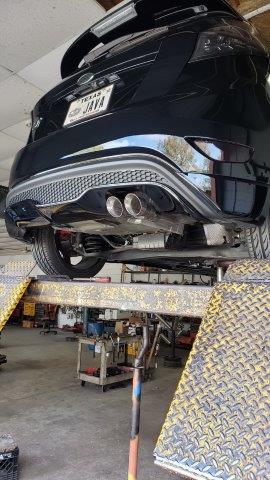

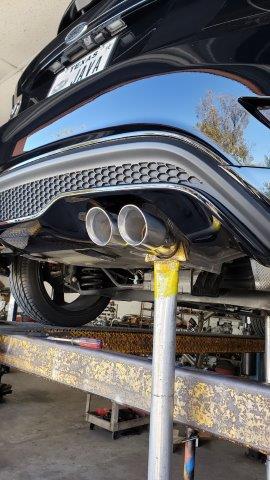

MBRP Exhaust install, removing the Thermal R&D

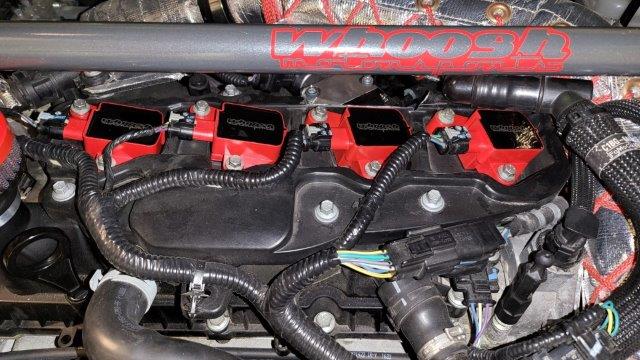

Whoosh Performance Coil Packs installed

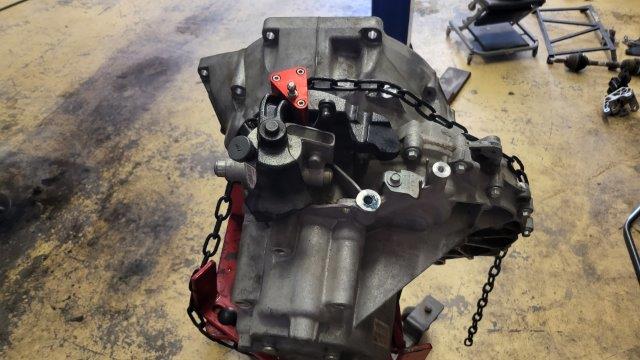

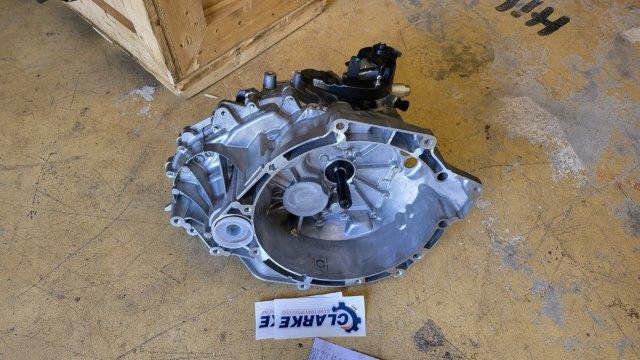

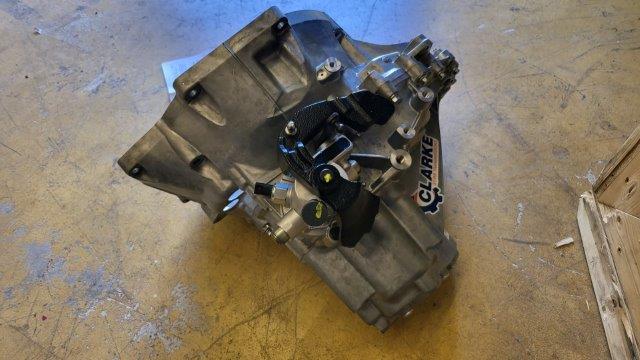

Clarke IB6 built transmission received!!
Shot peened, deburred, and WPC treated gears,
carbon synchros and Wavetrac LSD!

At Project Motorsports with Eric Wells (Owner)
Clarke IB6 built transmission, SPEC 3+ Clutch install

New filter for the Mishimoto Intake

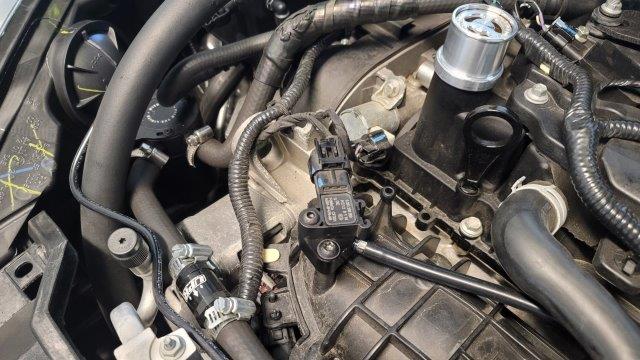

Mishimoto Sandwich Adapter install
with oil temp and pressure sensors for Prosport Gauges

Under hood heat reflective material installed

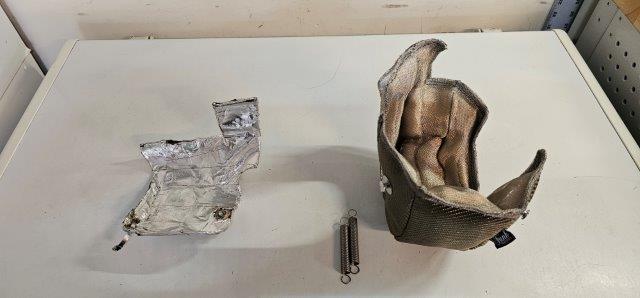

Modified stock heat shield removal

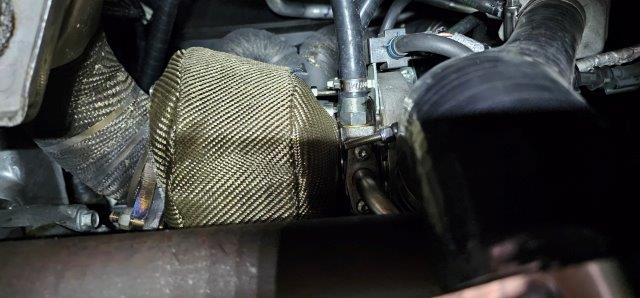

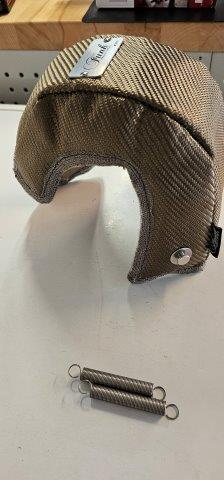

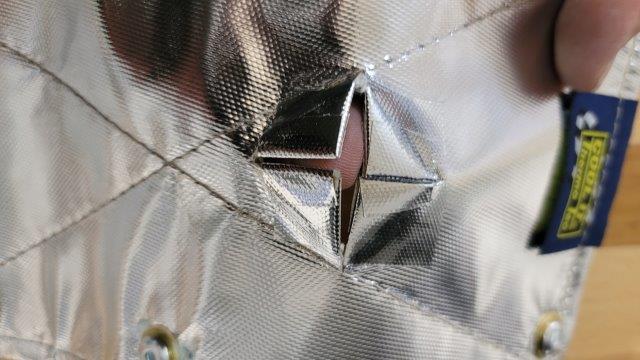

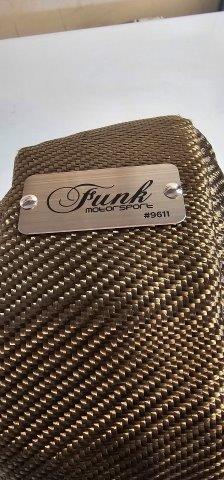

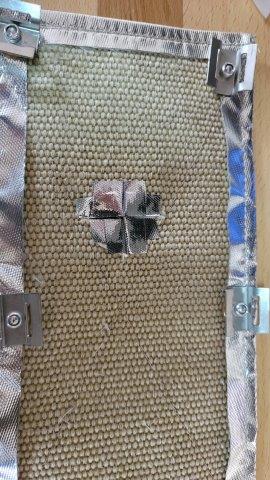

Funk Motorsports turbo heat blanket install

Mishimoto M-Line Intercooler (tube and fin)

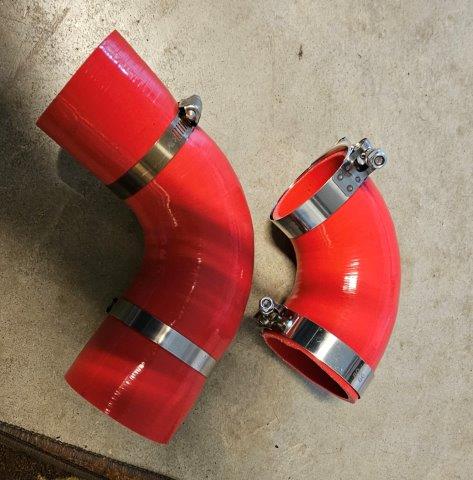

with Red 3 inch to 2.5 inch couplers

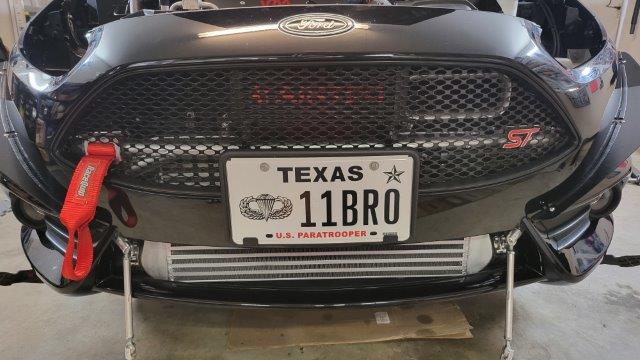

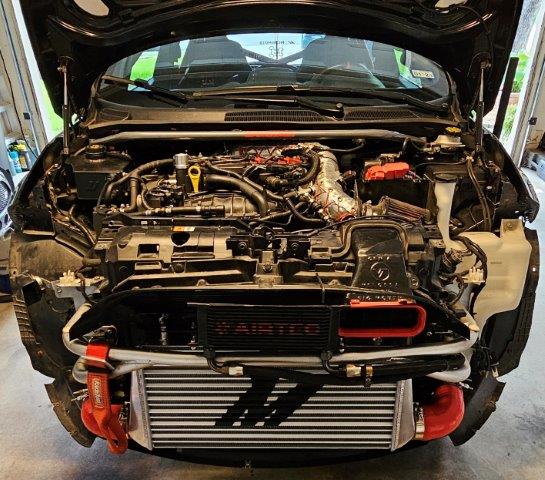

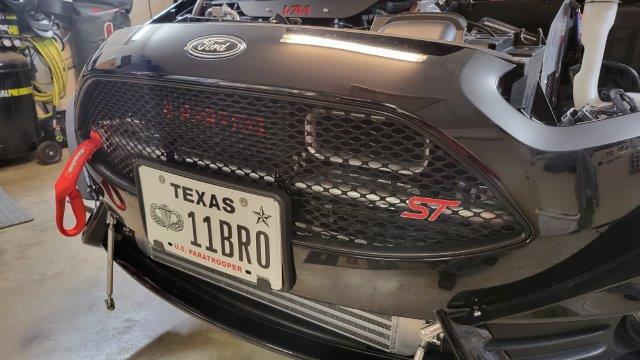

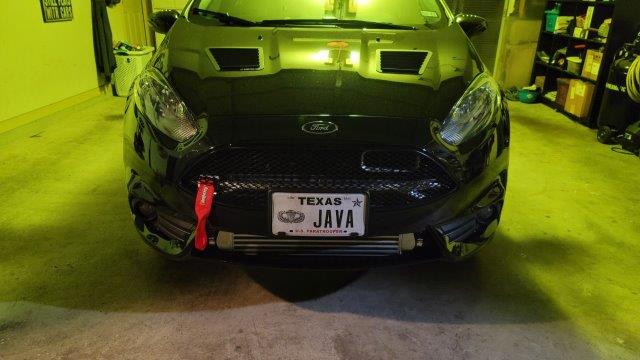

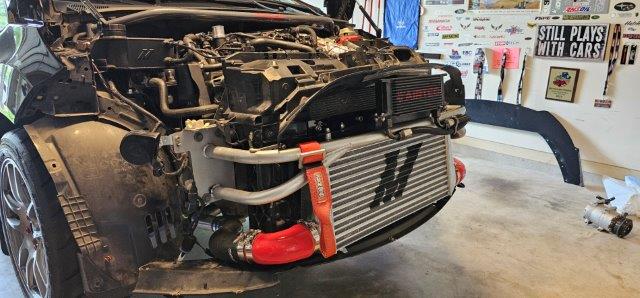

Mishimoto M-Line Intercooler Install

Velossa Tech Snorkel repainted red

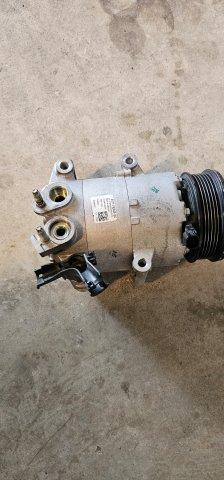

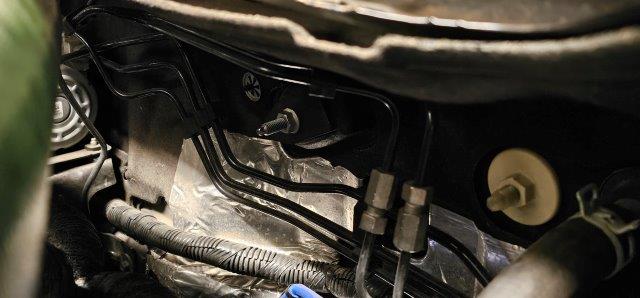

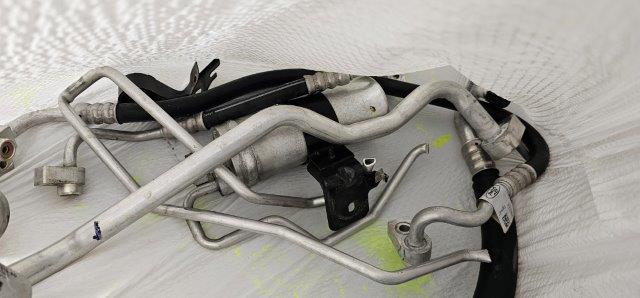

AC compressor and hardline removal

Ford Racing AC Delete Pulley installed with Continental 6PK1590 Belt

Dizzy Tuning AC Delete Firewall Plug installed

SEP Water Pump Pulley installed

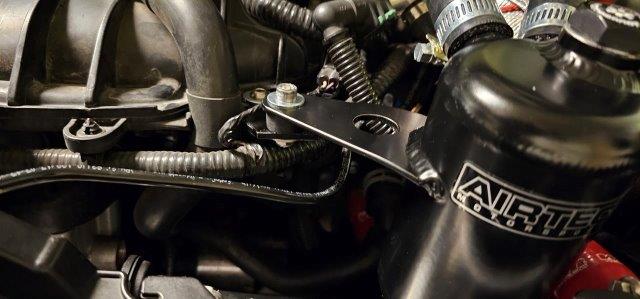

Airtec Catch Can install

Carls3DCreations Washer Reservoir Cap installed

Whoosh Red PVC/Oil Separator Hose install

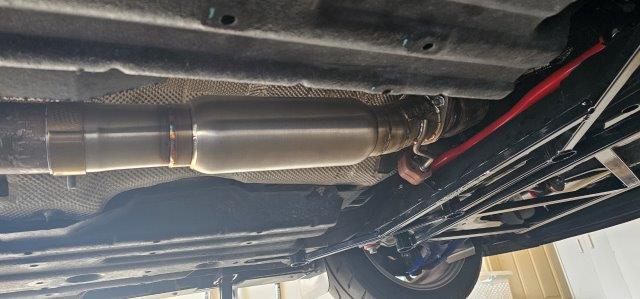

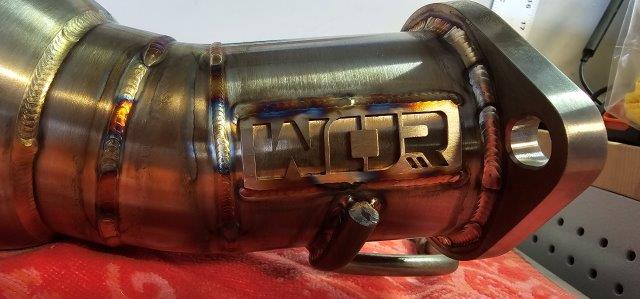

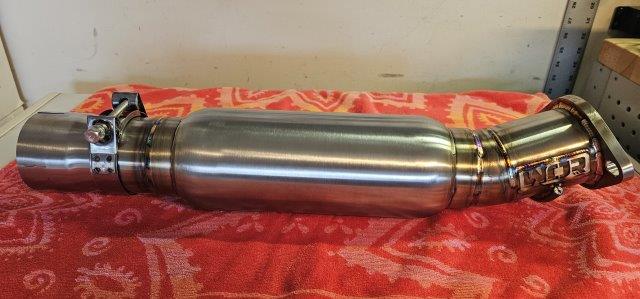

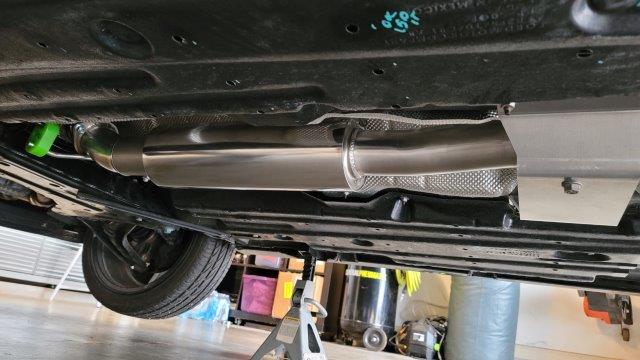

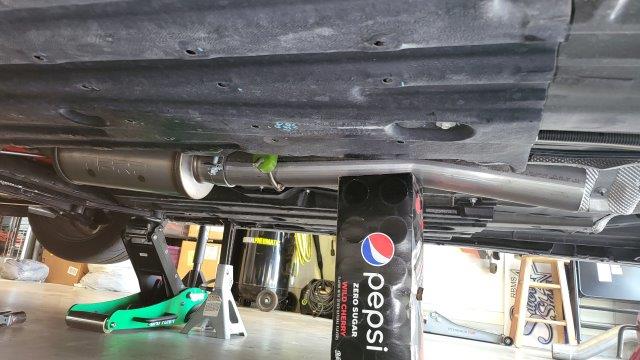

WOR Fabrication Custom Resonated Midpipe for MBRP Exhuast

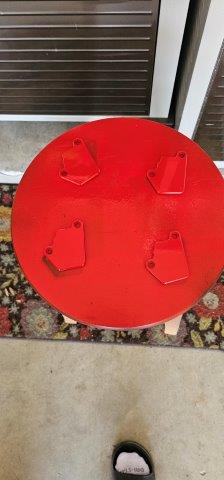

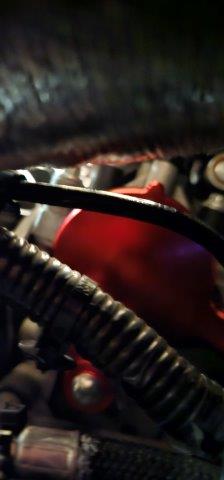

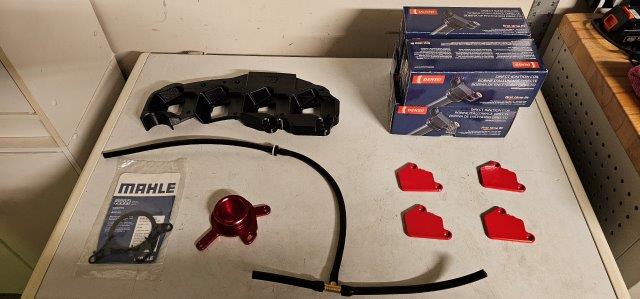

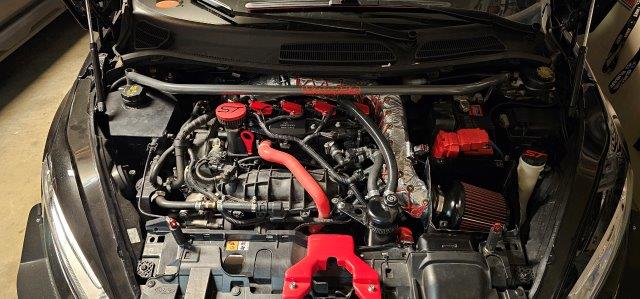

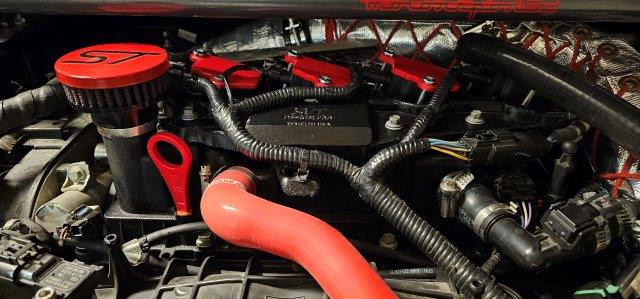

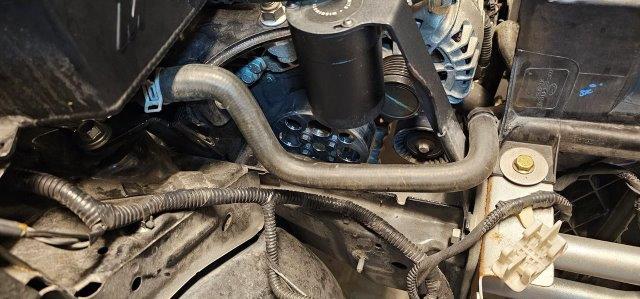

SVT Design Fab Vacuum Pump Delete and Focus Coil Pack Conversion Install

...Stay tuned...
